Your design in 3D, with no change to how you design
RDV Systems uses its own publishing pipeline to build an interactive 3D model of your project, showing the proposed design superimposed on the surrounding existing conditions, from the project data you already have.

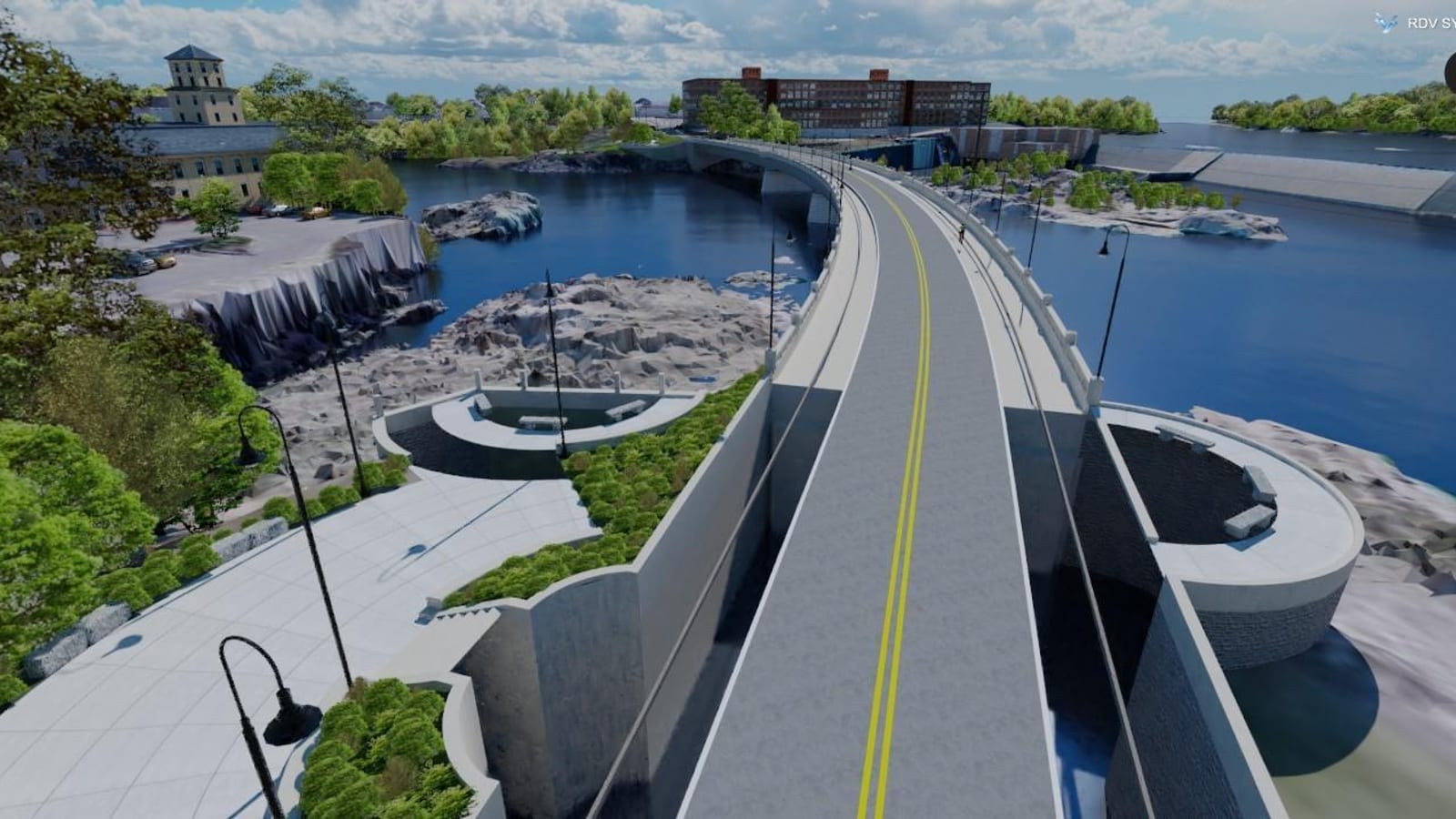

Ray-traced from the design files
Everything you already have, in one model

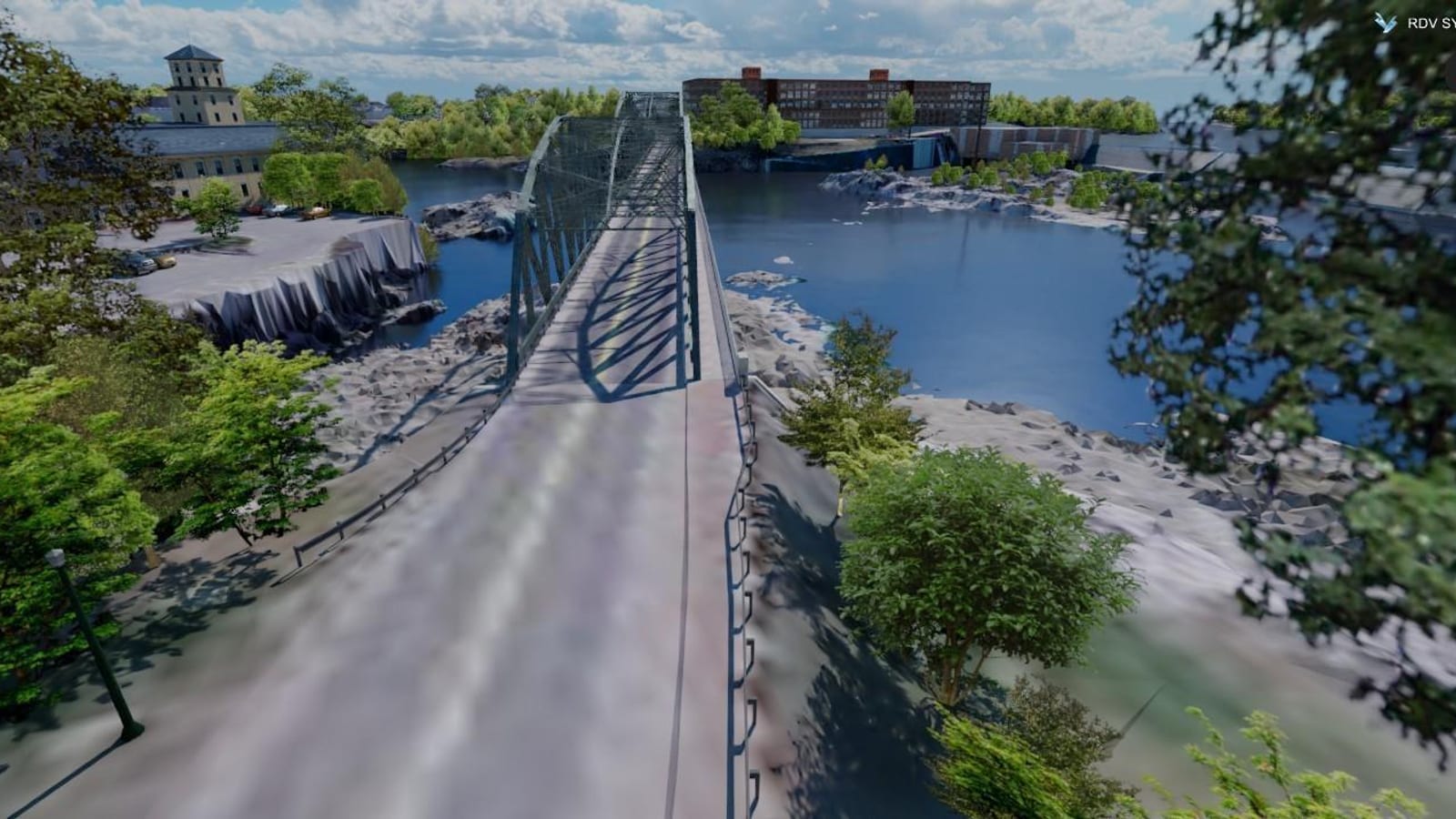

Existing conditions are modeled from whatever project data already exists, and the proposed design is superimposed on them: a review shows exactly what changes and what stays, not a design floating with no surrounding context.
- Proposed designDGN, DWG, OpenRoads, InfraWorks, Civil 3D or SketchUp
- Reality mesh3D reality mesh models
- Aerial imageryOf the site and its surroundings
- GISShape files
- Survey and topographySurvey data and topographic models
Compare alternatives before you commit
CAD design data drives the same model at any level of detail, ranging from early conceptual layouts to a fully detailed final design, so alternatives can be compared before a project commits to one.

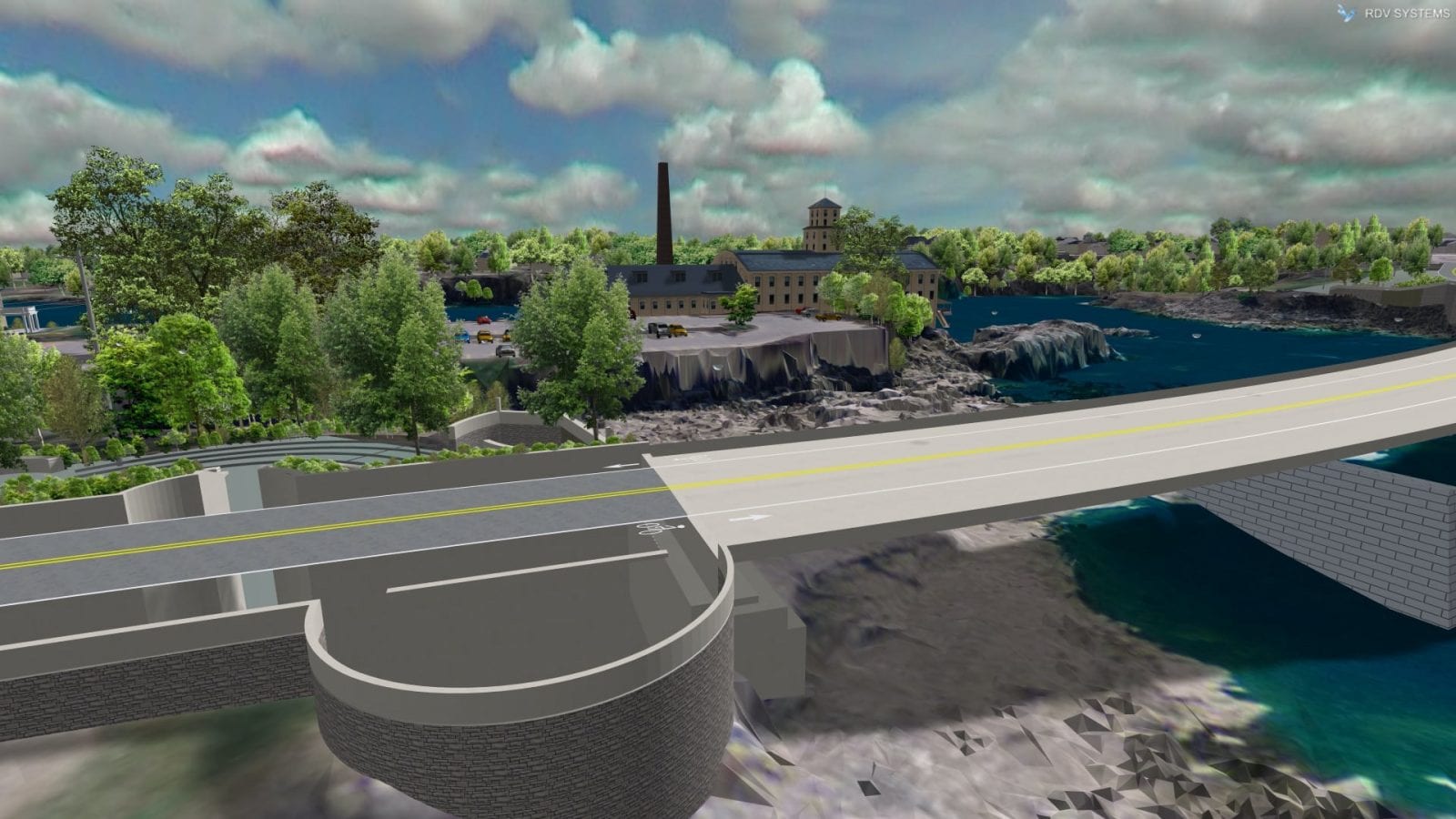

The Frank J. Wood Bridge replacement near Brunswick, Maine used this workflow to render several bridge and roadway alternatives side by side for the design team and the public.
Compare its existing and proposed viewsRapid delivery
As little as an hourfor high-quality ray-traced imagery and video
We know how important it is to deliver on time, every time, without any change to a project's existing CAD design process.
Traffic simulations, structure styles and aesthetic treatments and 3D models built in other applications such as SketchUp or 3ds Max all fold into the same rapid turnaround instead of restarting the pipeline for each one.
Get a model of your design
Send a DGN, DWG, OpenRoads, InfraWorks, Civil 3D or SketchUp file and get a 3D model back.
